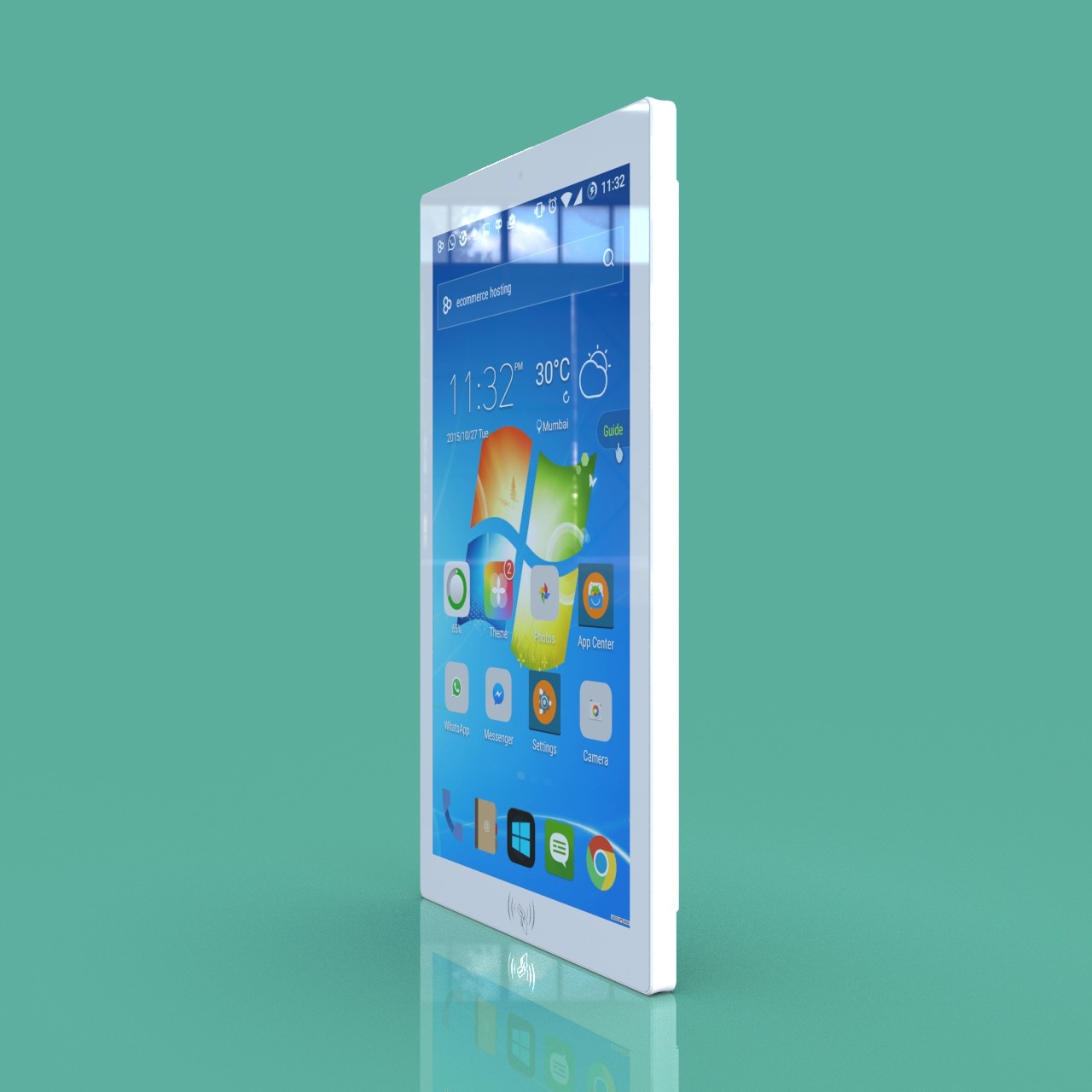

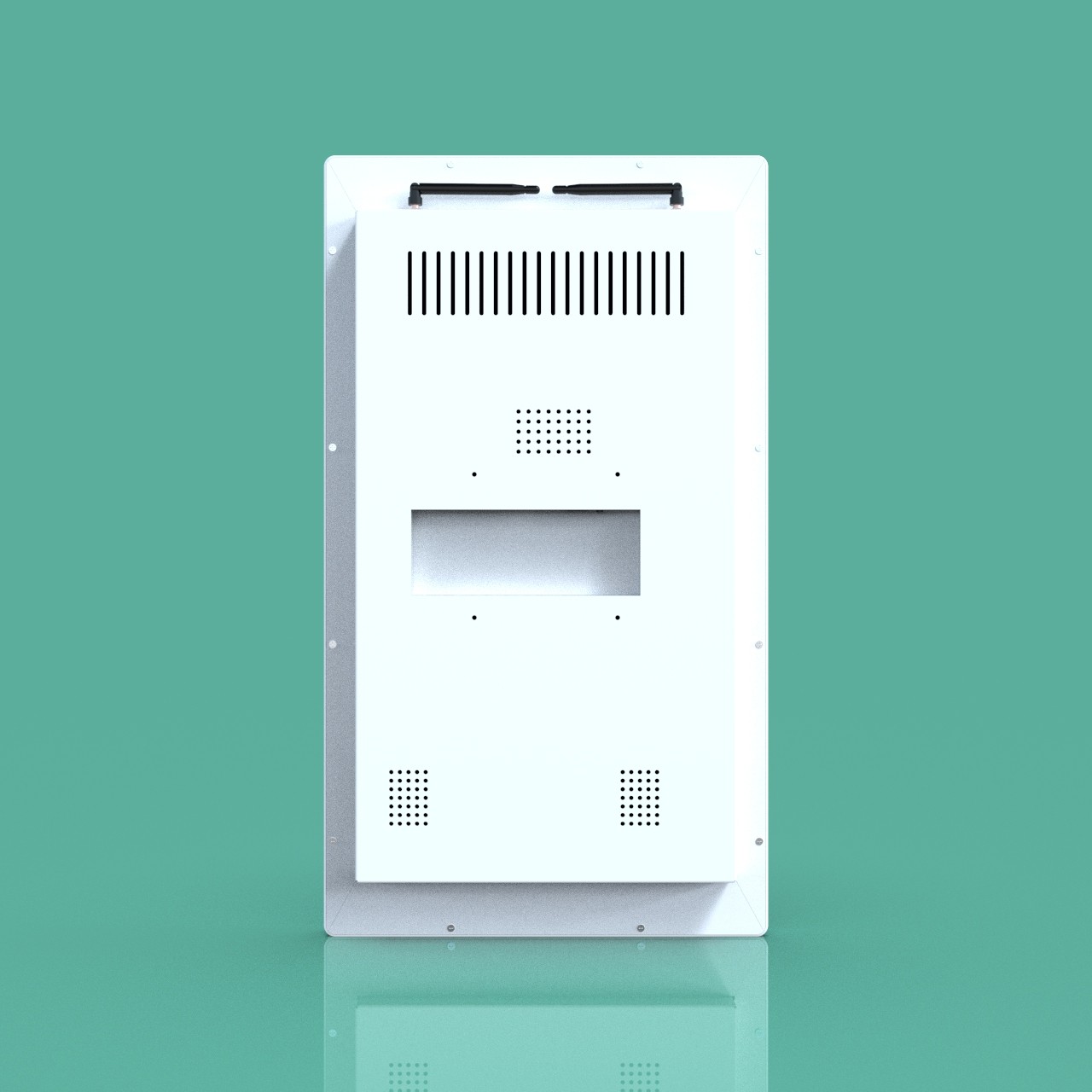

JP2105 Portrait Wall-Mounted Windows System Camera and Card Reader 21.5-Inch All-in-One Machine with a resolution of 1920×1080

Brand Name : Shi Zun

Model Number : JP2105

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 100+pcs+day

Delivery Time : 10 working days

Packaging Details : 384.16 × 233.5 × (13 + 29) mm

Operating System : Windows 10, Intel Core i5, 6th generation, dual-core, 2.4GHz

Configuration : 16GB RAM, 128GB storage

LCD Screen Size : 21.5 inches

Screen Resolution : 16:9 aspect ratio, resolution of 1920×1080

Viewing Angle : R/L 178-degree full viewing angle

Capacitive Touch : 10-point capacitive touch.

Brightness : 350 cd/m²

Camera : 2MP wide dynamic range, backlight-resistant camera

Card Reader : Supports IC, ID, and NFC cards

Speakers : 8Ω, 3W × 2

Operating Parameters : Voltage 12V, current 5A, operating temperature -20°C to 70°C, humidity 5% to 90% RH

Exterior Dimensions : 384.16 × 233.5 × (13 + 29) mm

External Ports : 1 HDMI port, 1 VGA port, 1 RJ45 port, 2 USB 2.0 ports, 2 USB 3.0 ports

Surface Material : Tempered glass front cover

Body Craftsmanship : CNC precision-crafted aluminum alloy with anodized finish

Installation Method : Embedded or wall-mounted

Color : Black + silver

Waterproof Rating : IP54

Contact Now

JP2105 Portrait Wall-Mounted Windows System Camera and Card Reader 21.5-Inch All-in-One Machine with a resolution of 1920×1080



Product Overview:
This 21.5-inch portrait wall-mounted Windows system camera and card reader all-in-one machine is an intelligent device that integrates the Windows operating system, designed for scenarios requiring high-performance computing and multi-touch operations. With its large portrait screen design, high-definition display, and powerful processing capabilities, it offers users a convenient and intuitive interactive experience.

Technical Features:

  1. High-Definition Display: Equipped with a 21.5-inch full HD LED backlit display, with a resolution of 1920×1080, providing a clear visual experience and smooth touch operation.
  2. Multi-Touch Support: Supports 10-point capacitive touch, customizable AG or AR touch screens, offering responsive touch interactions.
  3. Powerful Processing Capability: Powered by a self-developed industrial-grade motherboard solution.
  4. Rich Interfaces: Offers various interface options, including USB 2.0, USB 3.0, HDMI, VGA, and RJ45, meeting the needs of multiple peripheral connections.
  5. Operating System: Pre-installed with the Windows operating system; users can choose between Windows 7 and Windows 10 versions according to their needs.
  6. Network Connectivity: Supports Ethernet LAN, Wi-Fi (expandable to 4G wireless modules and Bluetooth 4.0).

Application Advantages:

  • Increased Efficiency: Fast response speeds and accurate touch operations significantly enhance work efficiency.
  • Ease of Management: Supports remote management and data export, facilitating personnel management and attendance statistics.
  • Flexibility: Supports multiple installation methods, including embedded, desktop, wall-mounted, and swing arm, to meet various scenario requirements.

Application Scenarios:

  • Commercial Displays: Widely used in scenic spots, parks, communities, streets, and media business districts for broadcasting commercial advertisements and multimedia systems related to specific application scenarios.
  • Educational Training: Suitable for schools, training institutions, and other educational venues, providing an interactive teaching experience.
  • Corporate Office: Used in corporate meeting rooms and reception areas to enhance brand image and work efficiency.

This 21.5-inch portrait wall-mounted Windows system camera and card reader all-in-one machine, with its advanced technology, powerful features, and flexible applications, provides users with an efficient and convenient intelligent interactive solution.



Operating System:
  • Windows 10, Intel Core i5, 6th generation, dual-core, 2.4GHz
 Configuration: 16GB RAM, 128GB storage
LCD Screen Size:

21.5 inches

 Screen Resolution: 16:9 aspect ratio, resolution of 1920×1080
Viewing Angle: R/L 178° full viewing angle Brightness: 350 cd/m²
Camera:
  • 2MP wide dynamic range, backlight-resistant camera
 Card Reader​:
  • Supports IC, ID, and NFC cards
Exterior Dimensions: 384.16 × 233.5 × (13 + 29) mm Working Parameters: Voltage: 12V, Current: 3A
Operating Temperature: -20°C to 70°C
Humidity: 5% to 90% RH
External Interfaces: 1 HDMI port, 1 VGA port, 1 RJ45 port, 2 USB 2.0 ports, 2 USB 3.0 ports Body Craftsmanship: CNC precision-crafted aluminum alloy with anodized finish
Surface Material: Tempered glass front cover Installation Methods: Embedded or wall-mounted
